Glass Calibration Plate
Dot Pattern ( CBD Series ) Detailed Drawing

Dot Pattern ( CBD Series ) Detailed Drawing

CBD01-150RL

CBD01-150RL: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD01-150RM

CBD01-150RM: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD01-150T

CBD01-150T: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD01-50RL

CBD01-50RL: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD01-50RM

CBD01-50RM: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD01-50T

CBD01-50T: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD02-18RL

CBD02-18RL: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD02-18T

CBD02-18T: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

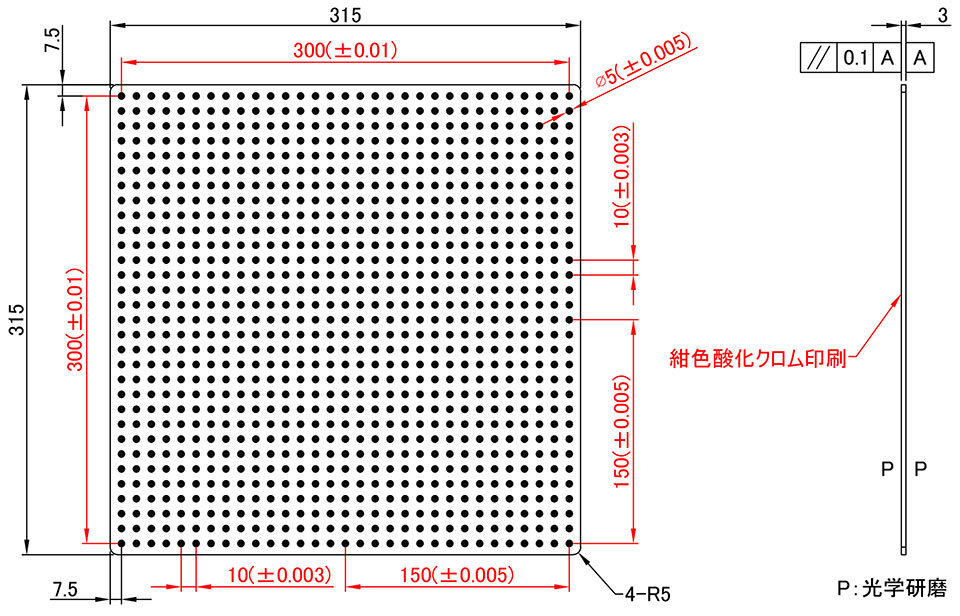

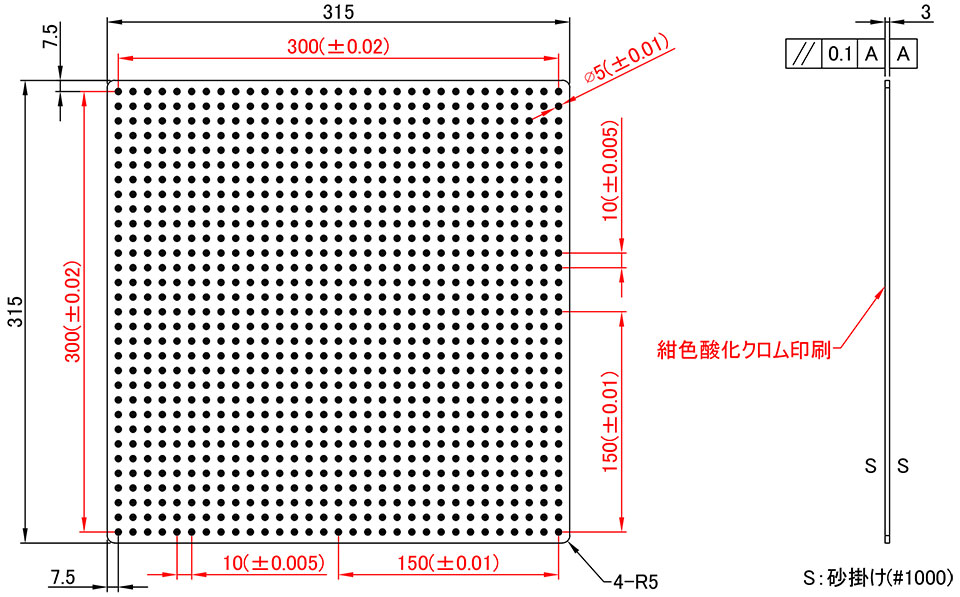

CBD03-320RM

CBD03-320RM: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD04-19RL

CBD04-19RL: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

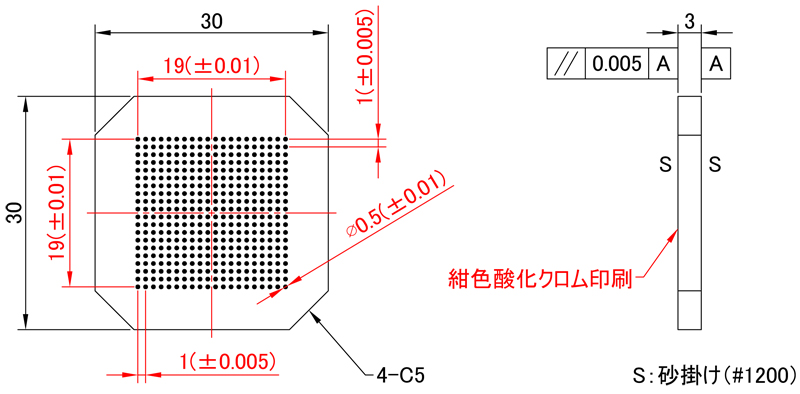

CBD04-19RM

CBD04-19RM: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD04-19T

CBD04-19T: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD05-38T

CBD05-38T: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.

CBD06-38T

CBD06-38T: Detailed Drawing

* Accuracy is guaranteed at 23 ˚C.
