Beam Splitter (Cube type): List

Unpolarized type

Dimensional Tolerance / +0.1/-0.3 mm
Angle Tolerance / ±3'
Transmission Eccentricity / ±5'
Flatness Degree (reference) / ~ 25 mm 1/4λ, 26 mm ~ 1/2λ,
AR Coating / Multicoating ･ 4 Sides
Wavelength / 400 ~ 700 nm
Raw Material / BK7 equivalent product

Catalog download

T : R = 50 % : 50 % ▼
T : R = 40 % : 60 % ▼
T : R = 60 % : 40 % ▼
T : R = 30 % : 70 % ▼
T : R = 70 % : 30 % ▼
T : R = 20 % : 80 % ▼
T : R = 80 % : 20 % ▼
T : R = 90 % : 10 % ▼

C2415

C2415

C2415

C2415

C2415

C2415

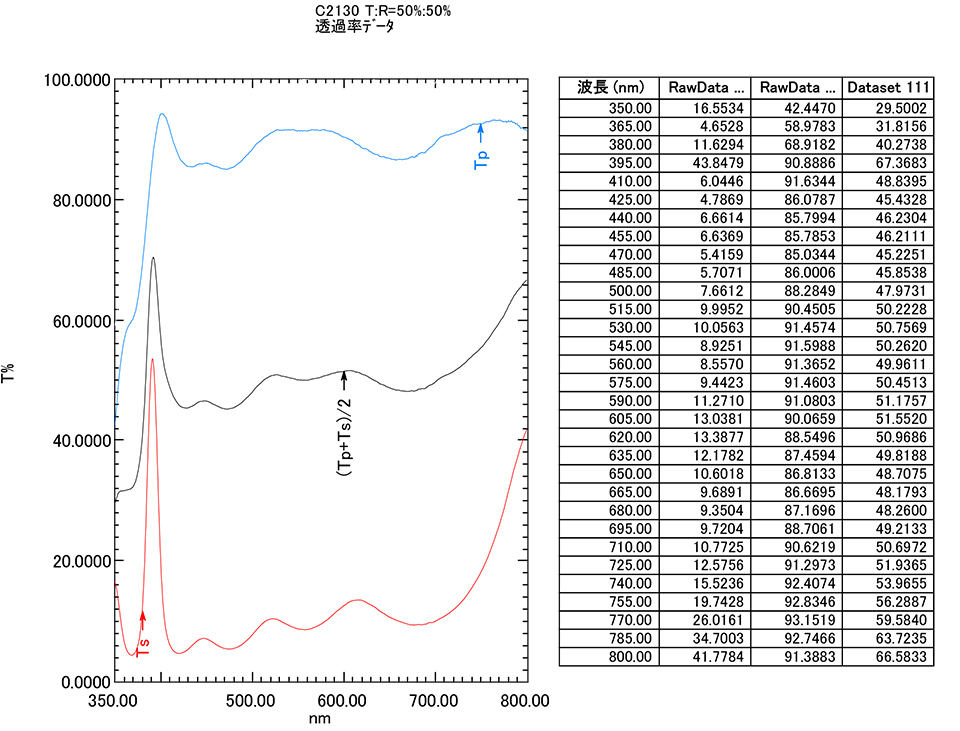

T(Transmitted) : R(Reflected) = 50% : 50%

Size	Model number	List price (excl. tax)
3 x 3 x 3 mm	C2103	4,000 yen
4 x 4 x 4 mm	C2104	4,000 yen
5 x 5 x 5 mm	C2105	4,000 yen
6 x 6 x 6 mm	C2106	5,000 yen
7 x 7 x 7 mm	C2107	5,000 yen
8 x 8 x 8 mm	C2108	5,000 yen
9 x 9 x 9 mm	C2109	5,000 yen
10 x 10 x 10 mm	C2110	5,000 yen
11 x 11 x 11 mm	C2111	6,000 yen
12 x 12 x 12 mm	C2112	6,000 yen
13 x 13 x 13 mm	C2113	7,000 yen
14 x 14 x 14 mm	C2114	7,000 yen
15 x 15 x 15 mm	C2115	7,000 yen
16 x 16 x 16 mm	C2116	8,000 yen
17 x 17 x 17 mm	C2117	9,000 yen
18 x 18 x 18 mm	C2118	9,000 yen
19 x 19 x 19 mm	C2119	9,500 yen
20 x 20 x 20 mm	C2120	9,500 yen
21 x 21 x 21 mm	C2121	11,000 yen
22 x 22 x 22 mm	C2122	11,500 yen
23 x 23 x 23 mm	C2123	12,000 yen
24 x 24 x 24 mm	C2124	12,500 yen
25 x 25 x 25 mm	C2125	12,500 yen
26 x 26 x 26 mm	C2126	15,000 yen
27 x 27 x 27 mm	C2127	16,000 yen
28 x 28 x 28 mm	C2128	17,000 yen
29 x 29 x 29 mm	C2129	18,000 yen
30 x 30 x 30 mm	C2130	18,000 yen
31 x 31 x 31 mm	C2131	19,000 yen
32 x 32 x 32 mm	C2132	20,000 yen
34 x 34 x 34 mm	C2134	22,000 yen
35 x 35 x 35 mm	C2135	23,000 yen
39 x 39 x 39 mm	C2139	28,000 yen
40 x 40 x 40 mm	C2140	30,000 yen
50 x 50 x 50 mm	C2150	40,000 yen
10 x 10 x 100 mm	C2110L	50,000 yen
12 x 12 x 100 mm	C2112L	52,000 yen
15 x 15 x 100 mm	C2115L	55,000 yen
20 x 20 x 100 mm	C2120L	65,000 yen
25 x 25 x 100 mm	C2125L	80,000 yen
30 x 30 x 100 mm	C2130L	100,000 yen

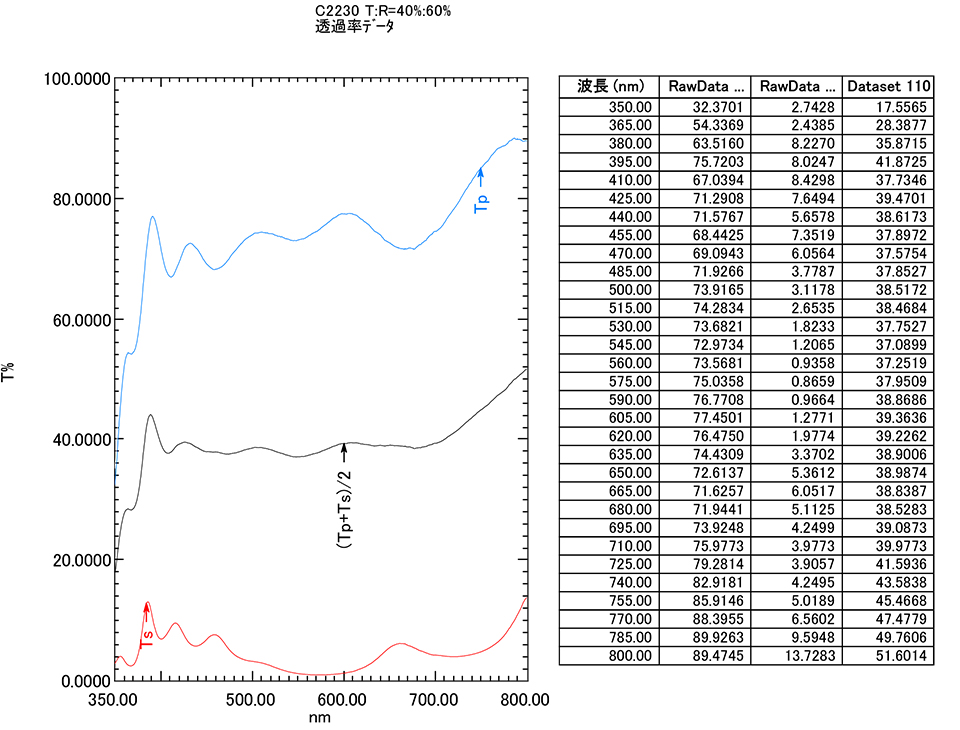

T(Transmitted) : R(Reflected) = 40 % : 60 %

Size	Model number	List price (excl. tax)
5 x 5 x 5 mm	C2205	7,000 yen
7 x 7 x 7 mm	C2207	7,000 yen
10 x 10 x 10 mm	C2210	7,000 yen
15 x 15 x 15 mm	C2215	10,000 yen
20 x 20 x 20 mm	C2220	13,000 yen
25 x 25 x 25 mm	C2225	17,000 yen
30 x 30 x 30 mm	C2230	22,000 yen

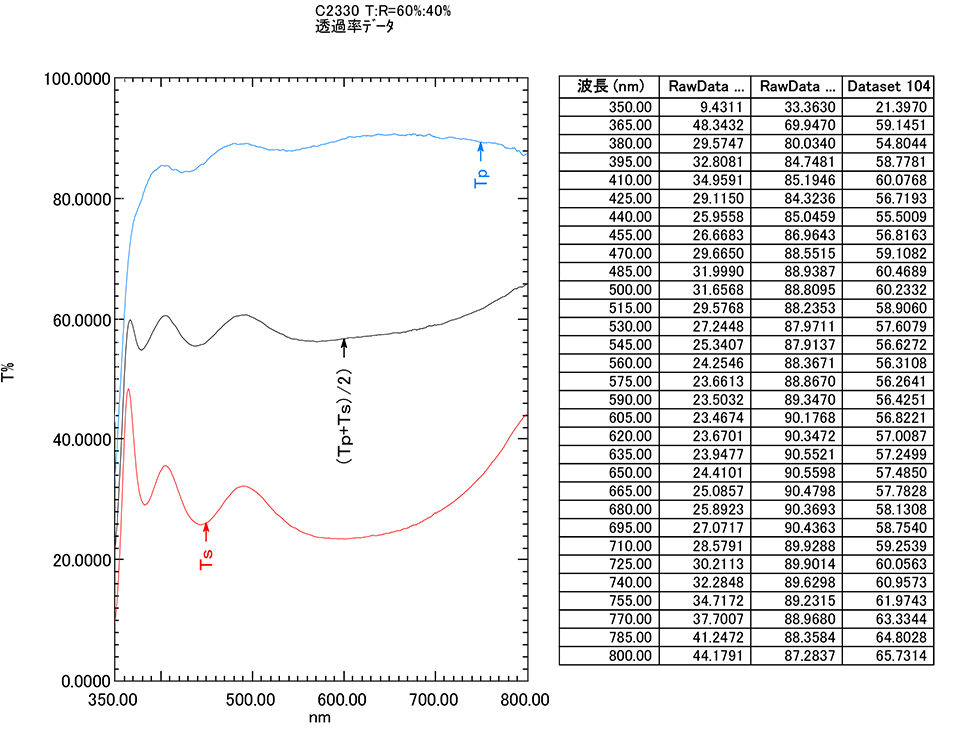

T(Transmitted) : R(Reflected) = 60 % : 40 %

Size	Model number	List price (excl. tax)
5 x 5 x 5 mm	C2305	6,000 yen
7 x 7 x 7 mm	C2307	6,000 yen
10 x 10 x 10 mm	C2310	6,000 yen
15 x 15 x 15 mm	C2315	8,000 yen
20 x 20 x 20 mm	C2320	10,000 yen
25 x 25 x 25 mm	C2325	15,000 yen
30 x 30 x 30 mm	C2330	20,000 yen

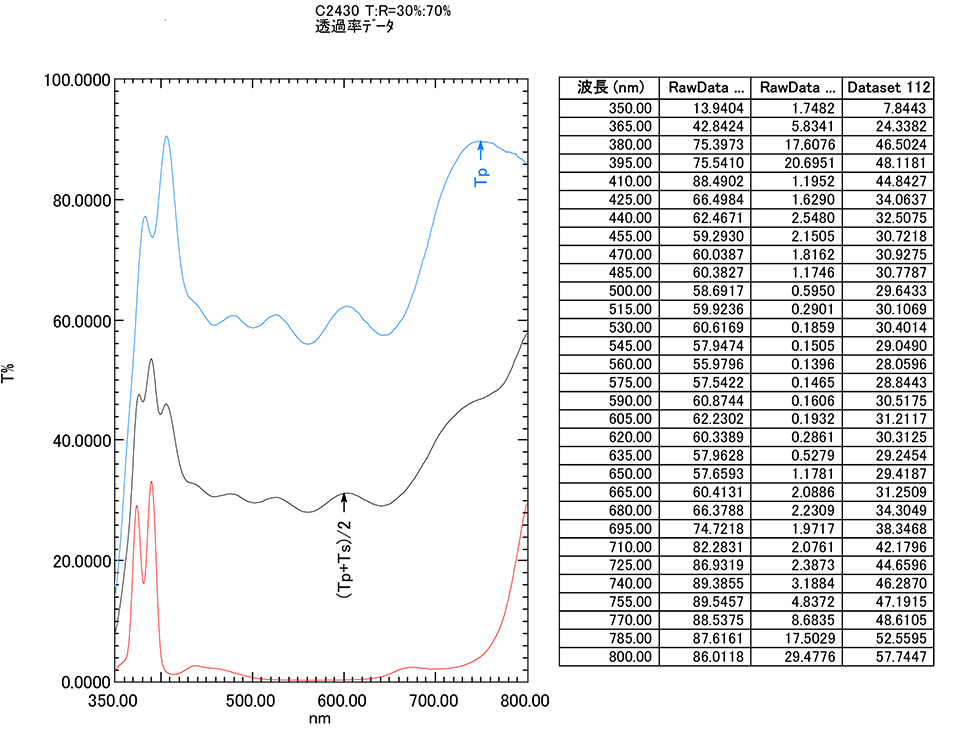

T(Transmitted) : R(Reflected) = 30 % : 70 %

Size	Model number	List price (excl. tax)
5 x 5 x 5 mm	C2405	8,000 yen
7 x 7 x 7 mm	C2407	8,000 yen
10 x 10 x 10 mm	C2410	8,000 yen
15 x 15 x 15 mm	C2415	12,000 yen
20 x 20 x 20 mm	C2420	16,000 yen
25 x 25 x 25 mm	C2425	20,000 yen
30 x 30 x 30 mm	C2430	25,000 yen

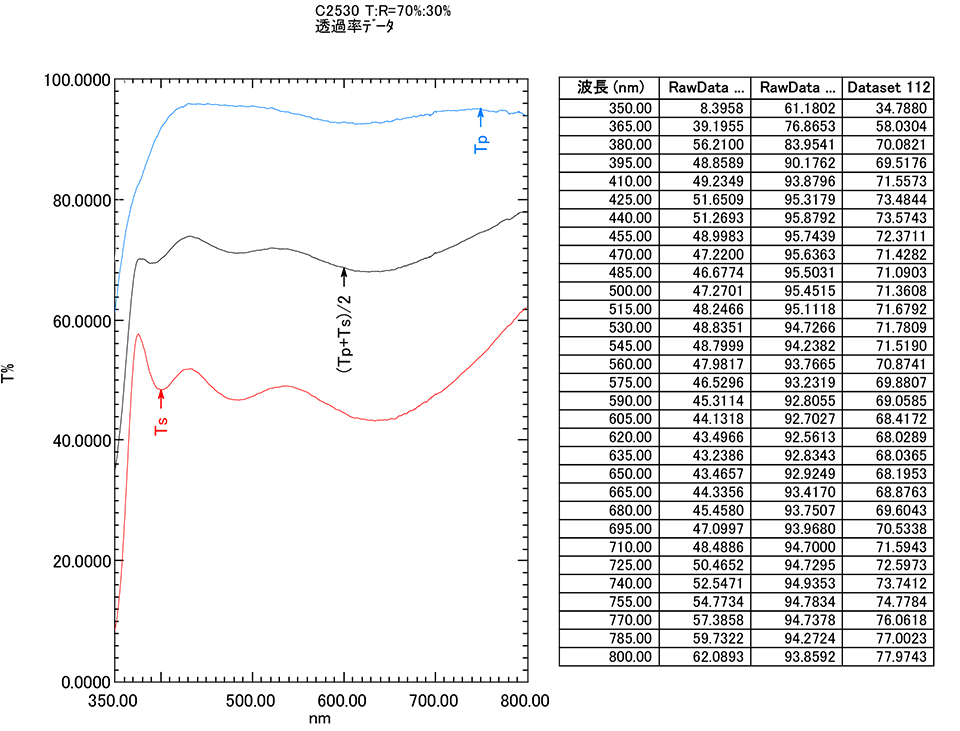

T(Transmitted) : R(Reflected) = 70 % : 30 %

Size	Model number	List price (excl. tax)
5 x 5 x 5 mm	C2505	6,000 yen
7 x 7 x 7 mm	C2507	6,000 yen
9 x 9 x 9 mm	C2509	6,000 yen
10 x 10 x 10 mm	C2510	6,000 yen
15 x 15 x 15 mm	C2515	8,000 yen
20 x 20 x 20 mm	C2520	10,000 yen
25 x 25 x 25 mm	C2525	15,000 yen
30 x 30 x 30 mm	C2530	20,000 yen

T(Transmitted) : R(Reflected) = 20 % : 80 %

Trancemittance (C2620)

C2620: Trancemittance

Note: All data shown here is actual data measured by Shibuya Optical. In case of using different measuring equipment, the data may change.

Price list

Size	Model number	List price (excl. tax)
5 x 5 x 5 mm	C2605	10,000 yen
7 x 7 x 7 mm	C2607	10,000 yen
9 x 9 x 9 mm	C2609	10,000 yen
10 x 10 x 10 mm	C2610	10,000 yen
15 x 15 x 15 mm	C2615	15,000 yen
20 x 20 x 20 mm	C2620	20,000 yen
25 x 25 x 25 mm	C2625	25,000 yen
28 x 28 x 28 mm	C2628	28,000 yen
30 x 30 x 30 mm	C2630	30,000 yen
35 x 35 x 35 mm	C2635	35,000 yen
40 x 40 x 40 mm	C2640	40,000 yen
50 x 50 x 50 mm	C2650	50,000 yen

T(Transmitted) : R(Reflected) = 80 % : 20 %

Trancemittance (C2720)

C2720: Trancemittance

Note: All data shown here is actual data measured by Shibuya Optical. In case of using different measuring equipment, the data may change.

Price List

Size	Model number	List price (excl. tax)
5 x 5 x 5 mm	C2705	6,000 yen
7 x 7 x 7 mm	C2707	6,000 yen
10 x 10 x 10 mm	C2710	6,000 yen
15 x 15 x 15 mm	C2715	8,000 yen
20 x 20 x 20 mm	C2720	10,000 yen
25 x 25 x 25 mm	C2725	15,000 yen
30 x 30 x 30 mm	C2730	20,000 yen

T(Transmitted) : R(Reflected) = 90 % : 10 %

Trancemittance (C2810 ~ C2830)

C2810 ~ C2830: Trancemittance

Note: All data shown here is actual data measured by Shibuya Optical. In case of using different measuring equipment, the data may change.

Price List

Size	Model number	List price (excl. tax)
10 x 10 x 10 mm	C2810	6,000 yen
12 x 12 x 12 mm	C2812	6,800 yen
15 x 15 x 15 mm	C2815	8,000 yen
18 x 18 x 18 mm	C2818	9,200 yen
20 x 20 x 20 mm	C2820	10,000 yen
22 x 22 x 22 mm	C2822	12,000 yen
25 x 25 x 25 mm	C2825	15,000 yen
28 x 28 x 28 mm	C2828	18,000 yen
30 x 30 x 30 mm	C2830	20,000 yen
35 x 35 x 35 mm	C2835	25,000 yen
40 x 40 x 40 mm	C2840	30,000 yen
50 x 50 x 50 mm	C2850	40,000 yen
