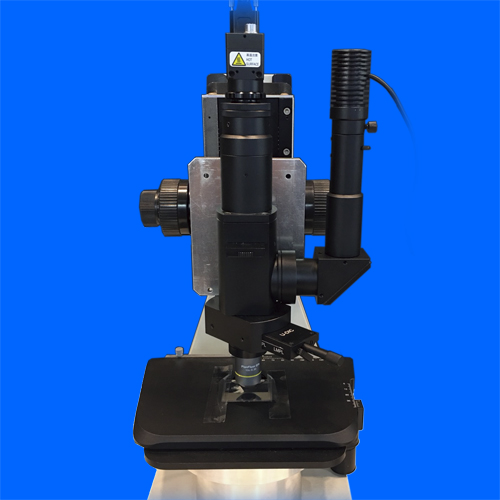

Compact Differential Interference Contrast Microscope DIC-S01
Comes with a 10X objective lens and one differential interference slider.
Proposal for the entire system is also available
Close-up of the eyepiece tube
Large field type is also available
Specifications
| Model Number | DIC-S01 |
| Eyepiece Tube Magnification |
1.0 X |
| Imaging Lens Focal Length |
200 mm |
| Compatible Objective Lens |
One of our objective lenses included (10 X, NA0.3, WD11 mm)
* Olympus differential interference objective lenses (infinity corrected) can also be attached, sold separately. |
| Differential Interference Slider |
One of our differential interference sliders included
* Olympus differential interference sliders can also be attached, sold separately. |
| Camera Mount |
C-Mount |
| Compatible Camera |
Sensor size 1 inch or smaller |
| Weight |
1.2kg |
Imaging Examples
Contrast of light and dark is visualized.
Without DIC
With DIC
