Beam Splitter (Plate type)
For visible range
- Dielectric Coating (Multi.)
- Back Side: With AR Coating
- Incidence Angle: 45˚
- Wavelength Range: λ400 ~ 700 nm
- Material: White Plate (B270)
- Other custom made special half mirror can be prepared.
T(Transmitted): R(Reflected)= 50% : 50%
Visible Range
Note: All data shown here is actual data measured by Shibuya Optical. In case of using
different measuring equipment or measuring the product, the data may change.
Price List
Thickness 0.5 mm
| Model Number |
Dimensions |
List Price* |
| H241 |
10 x 10 mm |
2,200 yen |
| H242 |
30 x 30 mm |
3,300 yen |
| H243 |
50 x 50 mm |
5,500 yen |
| H245 |
127 x 127 mm |
19,800 yen |
| H246 |
15 x 21 mm |
2,800 yen |
| H248 |
25 x 35 mm |
3,600 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
Thickness 1.0 mm
| Model Number |
Dimensions |
List Price* |
| H211 |
10 x 10 mm |
2,200 yen |
| H212 |
30 x 30 mm |
3,300 yen |
| H213 |
50 x 50 mm |
5,500 yen |
| H213S |
50 x 50 mm
This product has high parallelism and flatness(Click here for specifications) |
11,000 yen |
| H215 |
127 x 127 mm |
19,800 yen |
| H216 |
152.4 x 152.4 mm |
27,500 yen |
| H217 |
15 x 21 mm |
2,800 yen |
| H218 |
20 x 28 mm |
3,100 yen |
| H219 |
25 x 35 mm |
3,600 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
Thickness 1.5 mm
| Model Number |
Dimensions |
List Price* |
| H281 |
10 x 10 mm |
2,200 yen |
| H282 |
30 x 30 mm |
3,300 yen |
| H283 |
50 x 50 mm |
5,500 yen |
| H286 |
152.4 x 152.4 mm |
27,500 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
Thickness 2.0 mm
| Model Number |
Dimensions |
List Price* |
| H220 |
250 x 250 mm |
99,000 yen |
| H221 |
10 x 10 mm |
2,200 yen |
| H222 |
30 x 30 mm |
3,300 yen |
| H223 |
50 x 50 mm |
5,500 yen |
| H225 |
127 x 127 mm |
19,800 yen |
| H226 |
152.4 x 152.4 mm |
27,500 yen |
| H227 |
15 x 21 mm |
2,800 yen |
| H229 |
25 x 35 mm |
3,600 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
Thickness 3.0 mm
| Model Number |
Dimensions |
List Price* |
| H231 |
10 x 10 mm |
2,200 yen |
| H232 |
30 x 30 mm |
3,300 yen |
| H233 |
50 x 50 mm |
5,500 yen |
| H235 |
127 x 127 mm |
19,800 yen |
| H236 |
152.4 x 152.4 mm |
27,500 yen |
| H237 |
15 x 21 mm |
2,800 yen |
| H238 |
20 x 28 mm |
3,100 yen |
| H239 |
25 x 35 mm |
3,600 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
T(Transmitted): R(Reflected)= 70% : 30%
Visible Range
Note: All data shown here is actual data measured by Shibuya Optical. In case of using
different measuring equipment or measuring the product, the data may change.
Price List
Thickness 0.5 mm
| Model Number |
Dimensions |
List Price* |
| H293 |
50 x 50 mm |
7,700 yen |
| H295 |
127 x 127 mm |
22,000 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
Thickness 1.0 mm
| Model Number |
Dimensions |
List Price* |
| H251 |
10 x 10 mm |
2,200 yen |
| H252 |
30 x 30 mm |
3,300 yen |
| H253 |
50 x 50 mm |
5,500 yen |
| H253S |
50 x 50 mm
This product has high parallelism and flatness(Click here for specifications) |
11,000 yen |
| H256 |
152.4 x 152.4 mm |
27,500 yen |
| H257 |
15 x 21 mm |
2,800 yen |
| H259 |
25 x 35 mm |
3,600 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
Thickness 2.0 mm
| Model Number |
Dimensions |
List Price* |
| H206 |
152.4 x 152.4 mm |
27,500 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
T(Transmitted): R(Reflected)= 30% : 70%
Visible Range
Note: All data shown here is actual data measured by Shibuya Optical. In case of using
different measuring equipment or measuring the product, the data may change.
Price List
Thickness 1.0 mm
| Model Number |
Dimensions |
List Price* |
| H261 |
10 x 10 mm |
2,800 yen |
| H262 |
30 x 30 mm |
3,900 yen |
| H263 |
50 x 50 mm |
6,600 yen |
| H265 |
127 x 127 mm |
24,200 yen |
| H266 |
152.4 x 152.4 mm |
33,000 yen |
| H267 |
15 x 21 mm |
3,300 yen |
| H269 |
25 x 35 mm |
4,200 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.

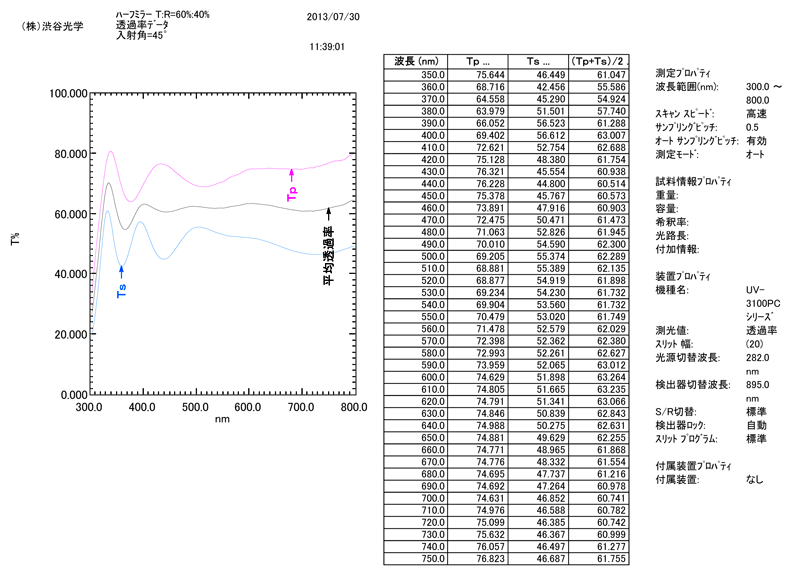

T(Transmitted): R(Reflected)= 60% : 40%
Visible Range
Note: All data shown here is actual data measured by Shibuya Optical. In case of using
different measuring equipment or measuring the product, the data may change.
Price List
Thickness 1.0 mm
| Model Number |
Dimensions |
List Price* |
| H271 |
10 x 10 mm |
2,200 yen |
| H272 |
30 x 30 mm |
3,300 yen |
| H273 |
50 x 50 mm |
5,500 yen |
| H276 |
152.4 x 152.4 mm |
27,500 yen |
| H277 |
15 x 21 mm |
2,800 yen |
* The above price is standard for only 1 piece. In case of quantity order, a special discount
rate is offered depends on your order quantity.
