T(Tansmitted): R(Reflected)= 50% : 50% (±10 %)
Back Side: With AR Coating
Incidence Angle: 45˚
Wavelength Range: λ300 ~ 400 nm
Material: Fused Silica

Charator Table(Reference Data)

Note: All data shown here is actual data measured by Shibuya Optical. In case of using different measuring equipment or measuring the product, the data may change.

Incidence Angle: 0˚

Incidence Angle: 45˚

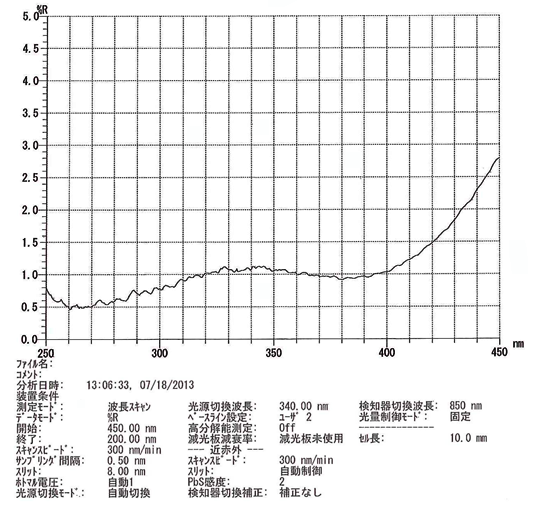

AR Reflectance

Price List

Tolerance: ±0.2

Model Number	Thickness	Size	List Price
UVH001	1.0 mm	50 x 50 mm	10,000 yen
UVH002	2.0 mm	50 x 50 mm	10,000 yen
UVH003	0.5 mm	50 x 50 mm	10,000 yen
UVH004	3.0 mm	50 x 50 mm	10,000 yen
