Optical Resolution Chart
Photographic paper, a photosensitive a material, is known for its high resolution feature. It realizes a ladder pattern of 20 um, regardless of its thin paper form. Moreover, RCUP 1 made by offset printing is characterized by being large and inexpensive. We also added durable PET sheet products.
- Both can be custom made, so please feel free to contact us first.
![RCPP1: Photo](../test_chart/RCPP1_01.jpg)
RCPP1
![RCPP2: Photo](../test_chart/RCPP2_01.jpg)
RCPP2
Price list
Model number |
RCPP1 |
RCPP2 |
Material |
Photographic paper |
Photographic paper |
Printing method |
Photosensitive processing (black) |
Photosensitive processing (black) |
Accuracy |
Minimum dimensional accuracy ±0.01 Maximum dimensional accuracy ±0.05 |
Minimum dimensional accuracy ±0.01 Maximum dimensional accuracy ±0.05 |
Size |
127x127 mm (Thickness: 0.25 mm) |
127x127 mm (Thickness: 0.25 mm) |
List price (excl. tax) |
10,000 yen |
10,000 yen |

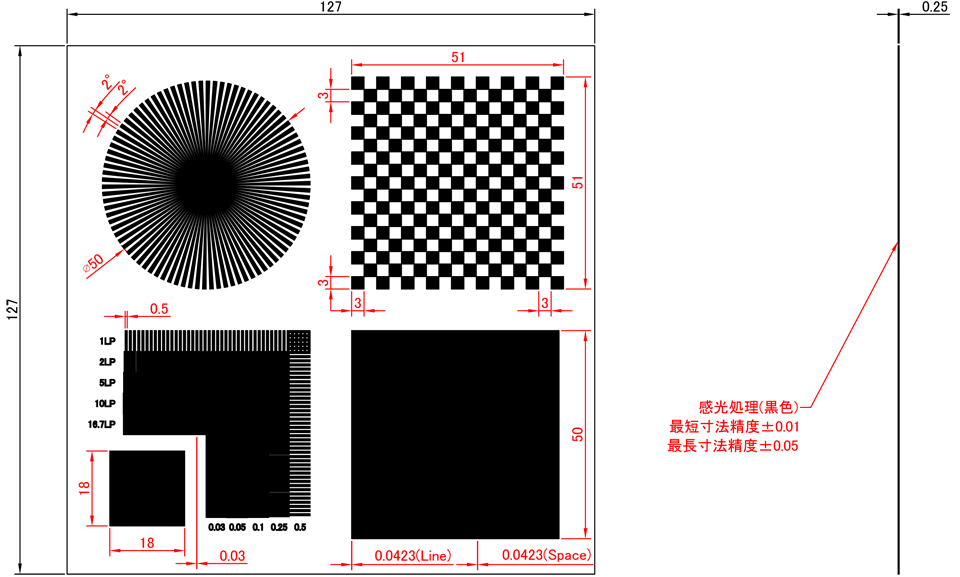

Detailed view |
|
|
* If you would like CAD data for detailed drawings please contact us.
![RCUP1: Photo](../test_chart/RCUP1_01.jpg)
RCUP1
Price list
Model number |
RCUP1 |
RCUP2 |
Material |
Yurite paper |
Yurite paper |
Printing method |
Offset printing (black) |
Offset printing (black) |
Accuracy |
Minimum accuracy ±0.02 Maximum accuracy ±0.50 |
Minimum accuracy ±0.10 Maximum accuracy ±0.50 |
Size |
A4 size 9 (Thickness: 0.18 mm) |
A4 size 9 (Thickness: 0.18 mm) |
List price (excl. tax) |
10,000 yen |
10,000 yen |
Detailed view |
|
|
* If you would like CAD data for detailed drawings please contact us.
PET sheet (White sheet bonding) type
![RCWF1: Photo 1](../test_chart/RCWF1_1.jpg)
RCWF1: Photo 1
![RCWF1: Photo 2](../test_chart/RCWF1_2.jpg)
RCWF1: Photo 2
![RCWF1: Photo 3](../test_chart/RCWF1_3.jpg)
RCWF1: Photo 3
Price list
Model number |
RCEF1 |
Material |
PET |
Printing method |
Emulsion print (black) |
Accuracy |
Minimum dimensional accuracy ±0.01 Maximum dimensional accuracy ±0.05 |
Size |
127x127 mm (Thickness: 0.26 mm) |
List price (excl. tax) |
10,000 yen |
Detailed view |
|
* If you would like CAD data for detailed drawings please contact us.
PET sheet (Transparent) type
![TCWF1: Photo 1](../test_chart/TCWF1_1.jpg)
TCWF1: Photo 1
![TCWF1: Photo 2](../test_chart/TCWF1_2.jpg)
TCWF1: Photo 2
![TCWF1: Photo 3](../test_chart/TCWF1_3.jpg)
TCWF1: Photo 3
Price list
Model number |
TCWF1 |
Material |
PET |
Printing method |
Emulsion print (black) |
Accuracy |
±0.005 |
Size |
127x127 mm (Thickness: 0.18 mm) |
List price (excl. tax) |
10,000 yen |
Detailed view |
|
* If you would like CAD data for detailed drawings please contact us.
