Transparent Film Test Chart (Angle ･ R radius ･ Line width)

Test Chart: List

IEEE Optical Resolution Chart
Transparent Film Test Chart (Angle ･ R radius ･ Line width)
Test Target
Square Target
Circle Target
Cross Target
Angle Target
Resolution Test Chart
Siemens Star Chart (Transmissive type)
Ronchi Ruling (Transmissive type)
Edge Reticle
Scratch Inspection Plate
White Plate

Angle, radius of curvature, line width can be achieved with a transparent film like test chart made by printing emulsion film on PET with a thickness of 0.175 mm. Custom made production is also possible, so please feel free to contact us first.

Model Number: FT1-A4T
Material: PET
Dimension: A4 size (thickness 0.175 mm)
List Price: 10,000 yen

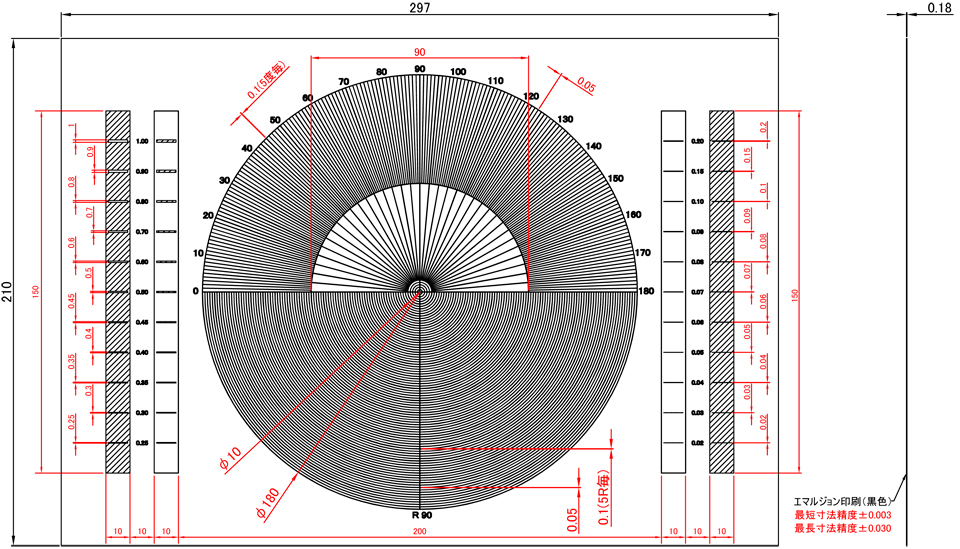

Transparent Film Test Chart (Angle ･ R radius ･ Line width): Photo01
