Color Glass Filter : List

Band Pass Filter (Blue, Green and Yellow)

Our company deals with SCHOTT Materials, HOYA Materials.
Actual measurement data of transmittance (charged) can be attached. (Measurement model: Shimadzu UV-3600)
Color glass is RoHS exempted item. For related materials, please click here (English).

"SCHOTT Materials" Band Pass Filter

Inquiry

Selectively transmit a desired wavelength range.
"SCHOTT" Color Glass Filters are classified into the following groups.
* S-BG36 are on this page.

"SCHOTT" Classification list

SCHOTT Color Glass stands out due to its selective absorption in the visible wavelength range. And the color glass filter's effect lies within the visible lights spectrum, so it makes the filters become a very indispensable and useful optical part in so many kinds of instrument like camera, physics and chemistry equipments etc..

SCHOTT Materials: Transmittance* Some products are not available at our company.
S-WG
Colorless glasses with different cutoffs in UV, transmitting in the visible range and IR
S-GG
Nearly colorless to yellow glasses, IR transmitting
S-OG
Orange glasses, IR transmitting
S-RG
Red and black glasses, IR transmitting
S-UG
Black and blue glasses, UV transmitting
S-BG
Blue, blue-green, and multi-band glasses
S-VG
Green glasses
S-KG
Virtually colorless glasses with high transmission in the visible and effective absorption in IR (heat protection filters)
S-NG
Neutral density glasses with uniform attenuation in the visible range
S-BG7 Processing exampleS-BG7 Processing example
S-BG18 Processing exampleS-BG18 Processing example
S-VG9 Processing exampleS-VG9 Processing example
Dimensional tolerance: ±0.2 mm, Thickness tolerance: ±0.1 mm, Surface treatment: Optical polishing.
Model number Size Thickness List price (excl. tax) Detailed data
(internal
transmittance)
S-BG3 50 x 50 mm 1.0 mm 8,500 yen Detailed Data pdf: S-BG3
S-BG4
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-BG7 50 x 50 mm 1.0 mm 8,500 yen Detailed Data pdf: S-BG7
S-BG12
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-BG18 50 x 50 mm 1.0 mm 10,000 yen Detailed Data pdf: S-BG18
S-BG20
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-BG23
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-BG25 50 x 50 mm 1.0 mm 11,000 yen Detailed Data pdf: S-BG25
S-BG26
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-BG28
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-BG38 50 x 50 mm 1.0 mm 8,500 yen Detailed Data pdf: S-BG38
S-BG39★ 50 x 50 mm 1.0 mm 9,000 yen Detailed Data pdf: S-BG39
S-BG40★ 50 x 50 mm 1.0 mm 9,000 yen Detailed Data pdf: S-BG40
S-BG42 50 x 50 mm 1.0 mm 9,000 yen Detailed Data pdf: S-BG42
S-BG50
* Discontinued		 50 x 50 mm 1.0 mm 12,000 yen Detailed Data pdf: S-BG50
★ BG39: In the case of normal storage, changes in the glass surface may occur within a few months.
★ BG40: When there is a danger of getting wet, please use dryer.
Model number Size Thickness List price (excl. tax) Detailed data
(internal
transmittance)
S-VG6
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
S-VG9
* Discontinued		 50 x 50 mm 1.0 mm 14,200 yen Detailed Data pdf: S-VG9
S-VG14
* Discontinued		 50 x 50 mm 1.0 mm 6,800 yen Data sheet
* S-BG36 are on this page.
* Marked items have been already discontinued to manufacture, but please contact with us, as we have some quantity of these discontinued items.
Inquiry

"HOYA Materials" Blue Filter

Inquiry

This is designed to transmit the narrow band wavelength mainly the wavelength of blur, and named from the highest wavelength.
It is useful for analysis of three colors, selection of wavelength and color compensation.

B390 Processing exampleB390 Processing example
B410 Processing exampleB410 Processing example
B440 Processing exampleB440 Processing example

Price List

Dimensional tolerance: ±0.2 mm, Thickness tolerance: ±0.1 mm, Surface treatment: Optical polishing.
Model number Material size Thickness List price (excl. tax)* Detailed data
B370-50-2.5 B370 50 x 50 mm 2.5 mm 11,000 yen Data sheet
B390-50-2.5 B390 50 x 50 mm 2.5 mm 11,000 yen Data sheet
B410-50-2.5 B410 50 x 50 mm 2.5 mm 11,000 yen Data sheet
B440-50-2.5 B440 50 x 50 mm 2.5 mm 11,000 yen Data sheet
B460-50-2.5 B460 50 x 50 mm 2.5 mm 11,000 yen Data sheet
Inquiry

"HOYA Materials" Green Filter

Inquiry

This is designed to transmit the narrow band of wavelength in mainly green color wavelength range and named from the wavelength at the highest transmission rate.
It is useful to get highest transmission rate in the limited wavelength, or to absorp lower wavelength than some limited wavelength by the combination with sharp cust filter.
It can be used as the filter to get clear contrast in the monochromatic photography and as green filter for three color analysis.

G530 Processing exampleG530 Processing example

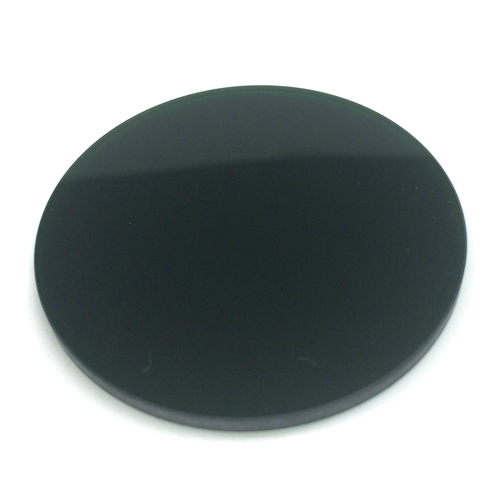

G545 Processing exampleG545 Processing example
G550 Processing exampleG550 Processing example

Price List

Dimensional Tolerance: ±0.2 mm, Thickness tolerance: ±0.1 mm, Surface Treatment: Optical Polishing.
Model number Material size Thickness List price (excl. tax)* Detailed data
G530-50-2.5 G530 50 x 50 mm 2.5 mm 11,000 yen Data sheet
G533-50-2.5 G533 50 x 50 mm 2.5 mm 11,000 yen Data sheet
G545-50-2.5 G545 50 x 50 mm 2.5 mm 11,000 yen Data sheet
G550-50-2.5 G550 50 x 50 mm 2.5 mm 11,000 yen Data sheet
Inquiry
