Our company deals with SCHOTT Materials, HOYA Materials.
Actual measurement data of transmittance (charged) can be attached. (Measurement model: Shimadzu UV-3600)
Color glass is RoHS exempted item. For related materials, please click here (English).

SCHOTT Materials ▼
HOYA Materials ▼

"SCHOTT Materials" Multi Band Filter

Inquiry

"SCHOTT" Color Glass Filters are classified into the following groups.

"SCHOTT" Classification list

SCHOTT Color Glass stands out due to its selective absorption in the visible wavelength range. And the color glass filter's effect lies within the visible lights spectrum, so it makes the filters become a very indispensable and useful optical part in so many kinds of instrument like camera, physics and chemistry equipments etc..

* Some products are not available at our company.

S-WG: Colorless glasses with different cutoffs in UV, transmitting in the visible range and IR
S-GG: Nearly colorless to yellow glasses, IR transmitting
S-OG: Orange glasses, IR transmitting
S-RG: Red and black glasses, IR transmitting
S-UG: Black and blue glasses, UV transmitting
S-BG: Blue, blue-green, and multi-band glasses
S-VG: Green glasses
S-KG: Virtually colorless glasses with high transmission in the visible and effective absorption in IR (heat protection filters)
S-NG: Neutral density glasses with uniform attenuation in the visible range

S-BG36 Processing example 1

S-BG36 Processing example 2

S-BG36 Processing example 3

Dimensional tolerance: ±0.2 mm, Thickness tolerance: ±0.1 mm, Surface treatment: Optical polishing.

Model number	Size	Thickness	List price (excl. tax)	Detailed data (internal transmittance)
S-BG36	50 x 50 mm	1.0 mm	Build-to-order

Inquiry

"HOYA Materials" Multiband Adjusting Filter

Inquiry

V10 contain neodymium, and HY1, holmium. The three are characterized by a outstanding absorption at certain wavelengths, and are used for adjusting and modifing wavelength, and V10 especially as a dual-color type filter.

As for customized size, please contact with us first.
The price depends on the quantity and shape.

V10 Processing example 1

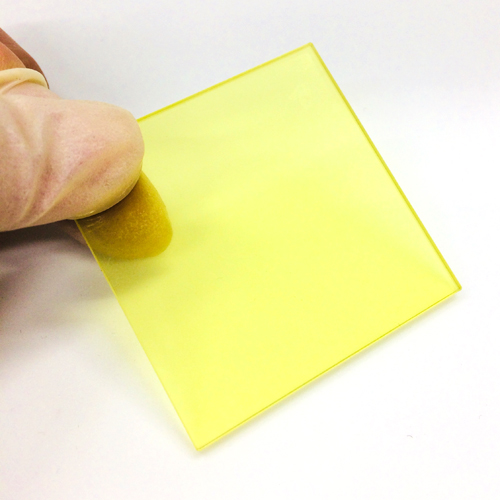

HY1 Processing example 3

Price List

Dimensional tolerance: ±0.2 mm, Thickness tolerance: ±0.1 mm, Surface treatment: Optical polishing.

Model number	Material	Size	Thickness	List price (excl. tax)*	Detailed data
V10-50-2.5	V10	50 x 50 mm	2.5 mm	23,000 yen	Data sheet
V11-50-2.0	V11	50 x 50 mm	2.0 mm	23,000 yen	Data sheet
HY1-50-2.5	HY1	50 x 50 mm	2.5 mm	23,000 yen	Data sheet
